The Akhter Drone Division is a cutting-edge, specialized unit focused on the research, development, deployment, and strategic application of unmanned aerial vehicles (UAVs), commonly known as drones.

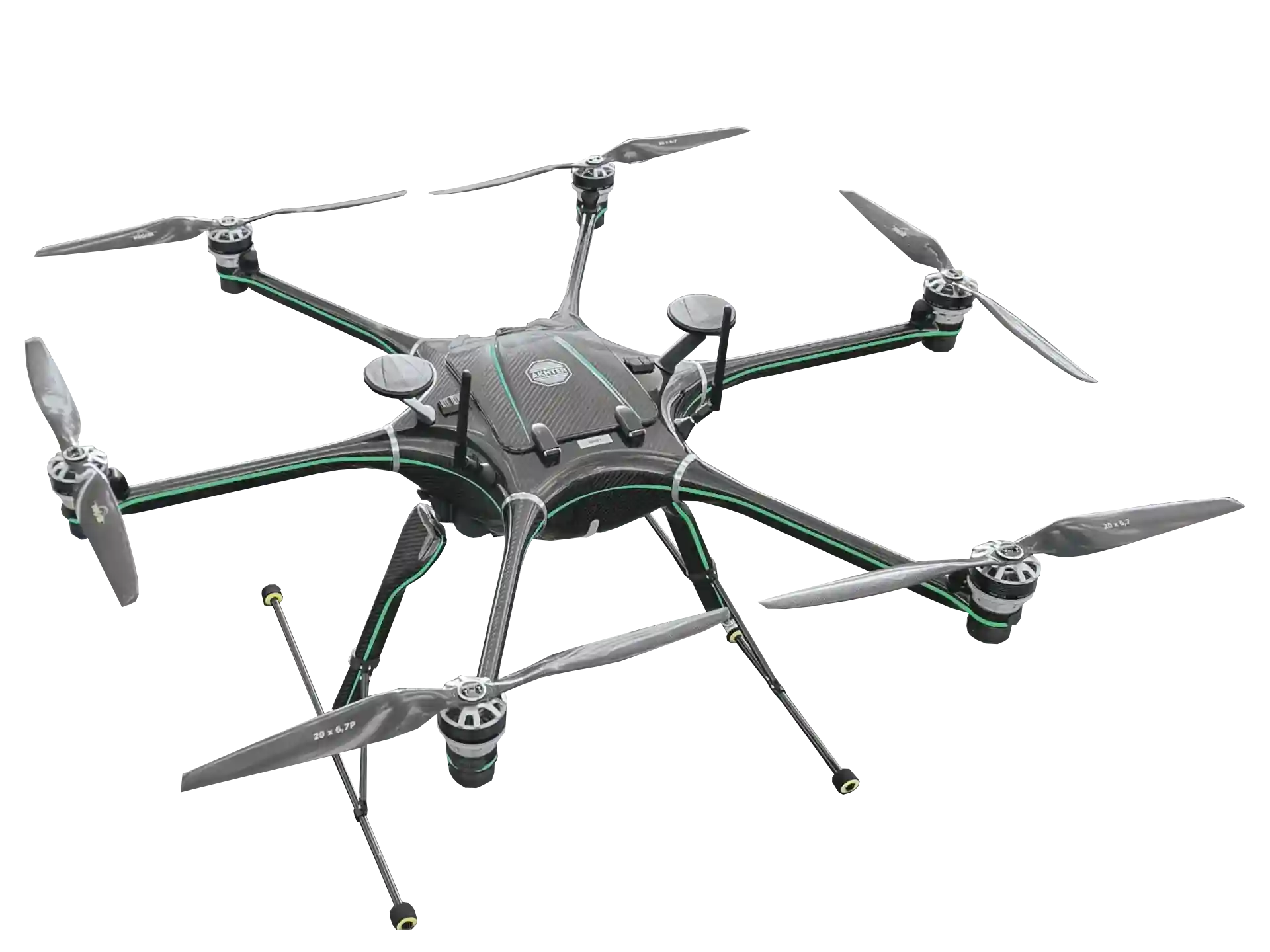

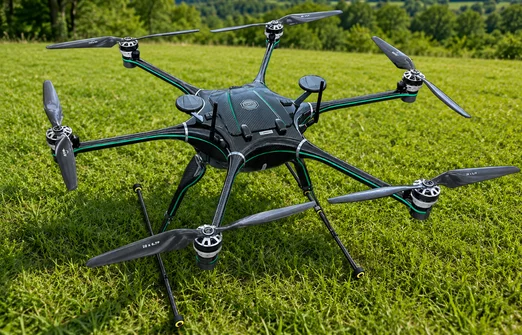

DM HX gen 2 drone
Dimensions
| Motor to motor: | 1067mm |
| Overall dimensions (M to M): | 1067 x 924 x up to 650 mm (L x W x H) |
| 1565 x 1432 x up to 650 mm (L x W x H, with props extended) | |
| Pack down: | 880 x 660 x 483 mm (L x W x H) |
| Payload ground clearance: | Up to 280 mm (short legs) or 380 mm (long legs) |
| Time to assemble/ disassemble: | Less than 10 minutes |
Power configuration
| Number of motors: | 6 brushless electric motors |
| Motor make and model: | KDE XE5215 |
| Electronic speed controller: | KDE 55A - 600Hz |
Propellers
| Propellers make and model: | Mejzlik 20" non folding |
| Material: | Carbon fibre |
| Orientation: | 3 CW and 3CCW |
Battery
| Type: | Lithium polymer (LiPo) |
| Nominal battery voltage: | 6S(22.2V)/12S(44.4V) |
| Minimum battery configuration: | 10A (1 x 10A) |
| Maximum battery configuration: | 60A (2 x 30A) |
| Battery connectors: | AS150 + XT150 anti spark |
Weights
| Typical empty weight: | 6.5kg (XF5215) |
| Max take-off mass: | 18kg (XF5215-6S) / 25kg (XF5215-12S) (at 20°C and 1013mbar) |
| Max payload: | 6.0kg (XF5215-6S) / 10kg(XF5215-12S) |
Payload mounting
| Location: | Bottom (or top as option) |
| System: | Carbon fibre plate with rail system and vibration dampers (customisable to payload requirement) |
Flight controller
| Flight endurance: | Up to 59 minutes |
| Flight controller: | Cube Orange |
| Flight controller limitsMaximum pitch / roll angle: | 45° |
| Flight modes: | Loiter, Altitude Hold,Stabilised, Return-to-Launch, GPS waypoint navigation (with auto land and take-off), Fly Here, Follow Mode |
| Suported input: | S.Bus or PWM |
| Fight telemetry system: | Incorporated |
| Battery telemetry system: | Incorporated |
| Telemetry link frequency: | 2.4 GHz |
| Miniumum RC transmitter channels: | 10 or more required |
| RC transmission frequency: | 2.4 GHz (extra frequencies as redundancy options) |
| Satellites: | GPS/ GLONASS/ BeiDou as required |
Positioning accuracy
| Horizontal: | Up to 04m or 0.02m with RTK |
| Vertical: | Up to 0.1m or 0.01m with RTK |
First person view camera
| Position: | Bottom from of core |
| FPV camera: | HD |
| FPV OSD telemetry: | User configurable |
| Broadcast link frequency: | 2.4 GHz |
Lighting
| Conspicuity light: | Green flashing LED |
| Navigation lights: | 3 Watt red and green LED (customisable) |
| Head lights: | RED LED |
Operating limitations and conditions
Always stay within the limits set by your National Aviation Authority.
| Max horizontal speed: | 20 m/s |
| Max vertical speed: | 6 m/s |
| Wind tolerance: | 12 m/s (26.8 mph) |
| Operating temperature: | -20°C - + 45°C |
| Precipitation: | Can operate in light rain or snow |
| Can operate through heavy showers (as option) |
Akhter Computers DM HX gen 2 drone specification
